電腦圖學 2019-03-28-week6

(1)主題: 打光part1

(2)主題: 模型OBJ檔

(3)實作: GLM vs. OBJ

(4)回家作業

TODO:下載source.zip不用解壓縮

            下載 windows.data.win32.glut32.dll

打開程式 Light & Material

之後像上個禮拜一樣下載 Download freeglut 3.0.0 for MinGW

打開codeblocks就可以完成

之後要在main.cpp刪除舊程式碼打出新程式碼。

現在要做打光的茶壺

  ---------茶壺實作-----

程式碼如下
#include <GL/glut.h>
const GLfloat light_ambient[]= {0.0f, 0.0f,0.0f, 1.0f};
const GLfloat light_diffuse[]= {1.0f, 1.0f,1.0f, 1.0f};
const GLfloat light_specular[]= {1.0f,1.0f,1.0f,1.0f};
const GLfloat light_position[] = {2.0f,5.0f,5.0f,0.0f};

const GLfloat mat_ambient[]    = { 0.7f, 0.7f, 0.7f, 1.0f };
const GLfloat mat_diffuse[]    = { 0.8f, 0.8f, 0.8f, 1.0f };
const GLfloat mat_specular[]   = { 1.0f, 1.0f, 1.0f, 1.0f };
const GLfloat high_shininess[] = { 100.0f };
 void display()
{
    glClear(GL_COLOR_BUFFER_BIT|GL_DEPTH_BUFFER_BIT);
    glutSolidTeapot(0.3);

    glutSwapBuffers();
}
int main(int argc,char**argv)
{
    glutInit(&argc,argv);
    glutInitDisplayMode(GLUT_DOUBLE|GLUT_DEPTH);
    glutCreateWindow("week06666");
    glutDisplayFunc(display);
    glClearColor(1,1,1,1);
    glEnable(GL_CULL_FACE);
    glCullFace(GL_BACK);



  OPENGL設定在此
   glEnable(GL_DEPTH_TEST);
    glDepthFunc(GL_LESS);

    glEnable(GL_LIGHT0);
    glEnable(GL_NORMALIZE);
    glEnable(GL_COLOR_MATERIAL);
    glEnable(GL_LIGHTING);

    glLightfv(GL_LIGHT0, GL_AMBIENT,  light_ambient);
    glLightfv(GL_LIGHT0, GL_DIFFUSE,  light_diffuse);
    glLightfv(GL_LIGHT0, GL_SPECULAR, light_specular);
    glLightfv(GL_LIGHT0, GL_POSITION, light_position);

    glMaterialfv(GL_FRONT, GL_AMBIENT,   mat_ambient);
    glMaterialfv(GL_FRONT, GL_DIFFUSE,   mat_diffuse);
    glMaterialfv(GL_FRONT, GL_SPECULAR,  mat_specular);
    glMaterialfv(GL_FRONT, GL_SHININESS, high_shininess);

    glutMainLoop();

}

要做 glm .obj


先找到下載的glm.h glm.c和transformation
將這三樣放到 code blocks 檔案的資料夾裡面(我的名稱是123)

打開程式glm.h glm.c和transformation  ((notepad++)
要在transformation打開 並尋找"glm"

複製 #include "glm.h" (1)

GLMmodel* pmodel = NULL;(2)

 if (!pmodel) {
pmodel = glmReadOBJ("data/porsche.obj");
if (!pmodel) exit(0);
glmUnitize(pmodel);
glmFacetNormals(pmodel);
glmVertexNormals(pmodel, 90.0);
    }

    glmDraw(pmodel, GLM_SMOOTH | GLM_MATERIAL);(3)

將三段程式放到 code blocks 對應的位置

#include <GL/glut.h>
#include "glm.h"

GLMmodel* pmodel = NULL;
const GLfloat light_ambient[]  = { 0.0f, 0.0f, 0.0f, 1.0f };
const GLfloat light_diffuse[]  = { 1.0f, 1.0f, 1.0f, 1.0f };
const GLfloat light_specular[] = { 1.0f, 1.0f, 1.0f, 1.0f };
const GLfloat light_position[] = { 2.0f, 5.0f, -5.0f, 1.0f };

const GLfloat mat_ambient[]    = { 0.7f, 0.7f, 0.7f, 1.0f };
const GLfloat mat_diffuse[]    = { 0.8f, 0.8f, 0.8f, 1.0f };
const GLfloat mat_specular[]   = { 1.0f, 1.0f, 1.0f, 1.0f };
const GLfloat high_shininess[] = { 100.0f };

void display()
{
    glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
    if (!pmodel) {
pmodel = glmReadOBJ("data/porsche.obj");
if (!pmodel) exit(0);
glmUnitize(pmodel);
glmFacetNormals(pmodel);
glmVertexNormals(pmodel, 90.0);
    }

    glmDraw(pmodel, GLM_SMOOTH | GLM_MATERIAL);
    glutSwapBuffers();
}
int main(int argc, char**argv)
{
    glutInit(&argc, argv);
    glutInitDisplayMode(GLUT_DOUBLE | GLUT_DEPTH);
    glutCreateWindow("week06");

    glutDisplayFunc(display);

    ///一堆 OpenGL設定在這裡
    glEnable(GL_DEPTH_TEST);

    glEnable(GL_LIGHT0);
    glEnable(GL_NORMALIZE);
    glEnable(GL_COLOR_MATERIAL);
    glEnable(GL_LIGHTING);

    glLightfv(GL_LIGHT0, GL_AMBIENT,  light_ambient);
    glLightfv(GL_LIGHT0, GL_DIFFUSE,  light_diffuse);
    glLightfv(GL_LIGHT0, GL_SPECULAR, light_specular);
    glLightfv(GL_LIGHT0, GL_POSITION, light_position);

    glMaterialfv(GL_FRONT, GL_AMBIENT,   mat_ambient);
    glMaterialfv(GL_FRONT, GL_DIFFUSE,   mat_diffuse);
    glMaterialfv(GL_FRONT, GL_SPECULAR,  mat_specular);
    glMaterialfv(GL_FRONT, GL_SHININESS, high_shininess);

    glutMainLoop();
}

這樣還跑不出車車，因為沒有加入glm到data

所以將data資料夾放到freeglut裡面

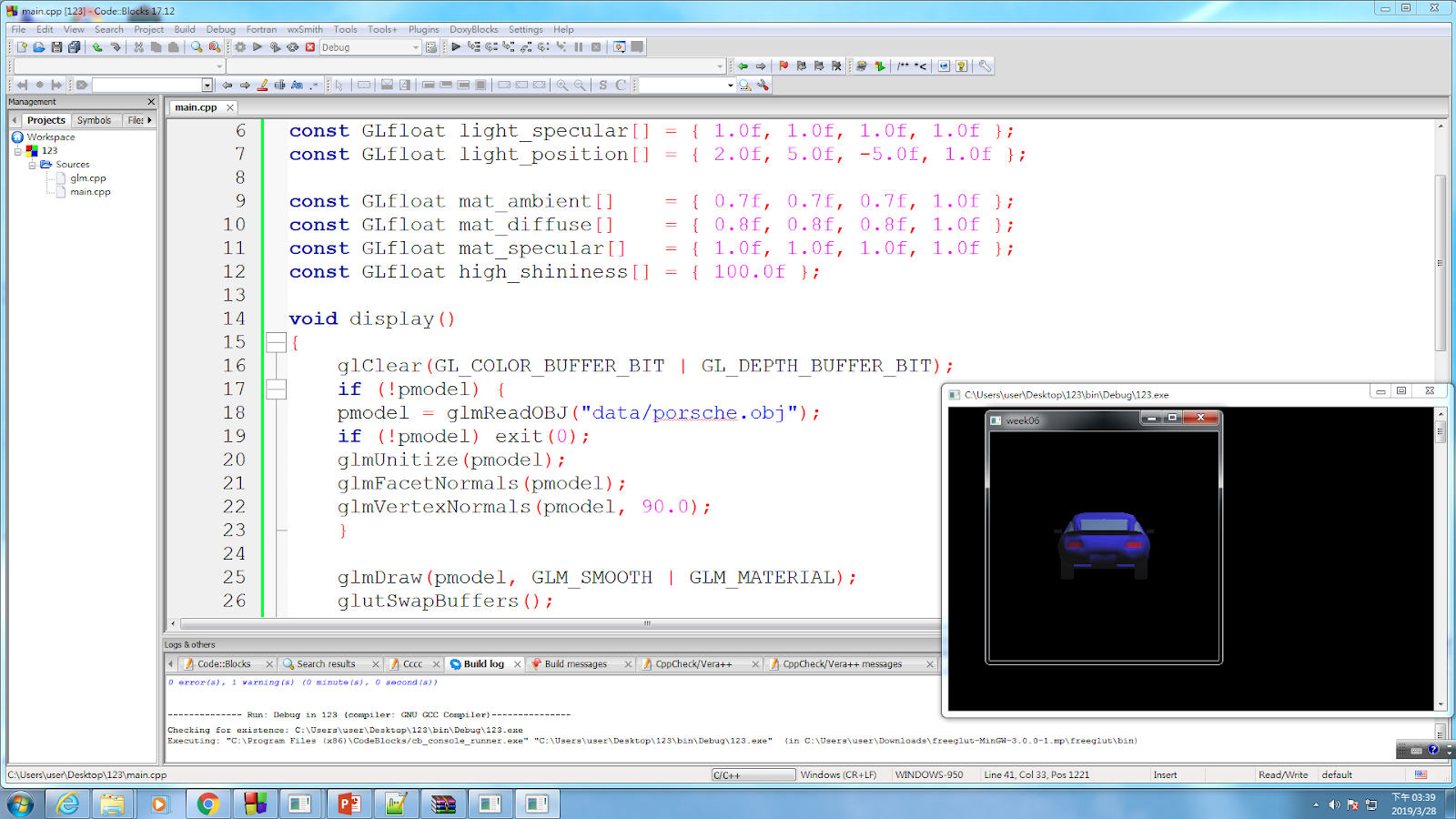

之後就可以執行跑出車車
