電腦圖學ＧＯＧＯＧＯ

首先到
http://www.cmlab.csie.ntu.edu.tw/~jsyeh/3dcg10/

下載: windows.zip
          data.zip
          glut32.dll
          source.zip
小心，data.zip
要解成
下載\windows\data\模型
不要解成
下載\windows\data\data\模型
接著

（１）Ｔｈｅｍｅ：打光Ｐａｒｔ０１

第1步:

const GLfloat light_ambient[]  = { 0.0f, 0.0f, 0.0f, 1.0f };
const GLfloat light_diffuse[]  = { 1.0f, 1.0f, 1.0f, 1.0f };
const GLfloat light_specular[] = { 1.0f, 1.0f, 1.0f, 1.0f };
const GLfloat light_position[] = { 2.0f, 5.0f, 5.0f, 0.0f };

const GLfloat mat_ambient[]    = { 0.7f, 0.7f, 0.7f, 1.0f };
const GLfloat mat_diffuse[]    = { 0.8f, 0.8f, 0.8f, 1.0f };
const GLfloat mat_specular[]   = { 1.0f, 1.0f, 1.0f, 1.0f };
const GLfloat high_shininess[] = { 100.0f };

第2步:

glClearColor(1,1,1,1);
    glEnable(GL_CULL_FACE);
    glCullFace(GL_BACK);

    glEnable(GL_DEPTH_TEST);
    glDepthFunc(GL_LESS);

    glEnable(GL_LIGHT0);
    glEnable(GL_NORMALIZE);
    glEnable(GL_COLOR_MATERIAL);
    glEnable(GL_LIGHTING);

    glLightfv(GL_LIGHT0, GL_AMBIENT,  light_ambient);
    glLightfv(GL_LIGHT0, GL_DIFFUSE,  light_diffuse);
    glLightfv(GL_LIGHT0, GL_SPECULAR, light_specular);
    glLightfv(GL_LIGHT0, GL_POSITION, light_position);

    glMaterialfv(GL_FRONT, GL_AMBIENT,   mat_ambient);
    glMaterialfv(GL_FRONT, GL_DIFFUSE,   mat_diffuse);
    glMaterialfv(GL_FRONT, GL_SPECULAR,  mat_specular);

    glMaterialfv(GL_FRONT, GL_SHININESS, high_shininess);

第3步:

先打上茶壺程式

紅色為複製上的部分打上茶壺程式

#include<GL/glut.h> const GLfloat light_ambient[] = { 0.0f, 0.0f, 0.0f, 1.0f }; const GLfloat light_diffuse[] = { 1.0f, 1.0f, 1.0f, 1.0f }; const GLfloat light_specular[] = { 1.0f, 1.0f, 1.0f, 1.0f }; const GLfloat light_position[] = { 2.0f, 5.0f, 5.0f, 0.0f }; const GLfloat mat_ambient[] = { 0.7f, 0.7f, 0.7f, 1.0f }; const GLfloat mat_diffuse[] = { 0.8f, 0.8f, 0.8f, 1.0f }; const GLfloat mat_specular[] = { 1.0f, 1.0f, 1.0f, 1.0f }; const GLfloat high_shininess[] = { 100.0f }; void display(){ glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT); glutSolidTeapot( 0.3 ); glutSwapBuffers(); } int main(int argc, char**argv){ glutInit(&argc, argv); glutInitDisplayMode(GLUT_DOUBLE | GLUT_DEPTH); glutCreateWindow("HW06"); glutDisplayFunc(display); glClearColor(1,1,1,1); glEnable(GL_CULL_FACE); glCullFace(GL_BACK); glEnable(GL_DEPTH_TEST); glDepthFunc(GL_LESS); glEnable(GL_LIGHT0); glEnable(GL_NORMALIZE); glEnable(GL_COLOR_MATERIAL); glEnable(GL_LIGHTING); glLightfv(GL_LIGHT0, GL_AMBIENT, light_ambient); glLightfv(GL_LIGHT0, GL_DIFFUSE, light_diffuse); glLightfv(GL_LIGHT0, GL_SPECULAR, light_specular); glLightfv(GL_LIGHT0, GL_POSITION, light_position); glMaterialfv(GL_FRONT, GL_AMBIENT, mat_ambient); glMaterialfv(GL_FRONT, GL_DIFFUSE, mat_diffuse); glMaterialfv(GL_FRONT, GL_SPECULAR, mat_specular); glMaterialfv(GL_FRONT, GL_SHININESS, high_shininess); glutMainLoop(); }

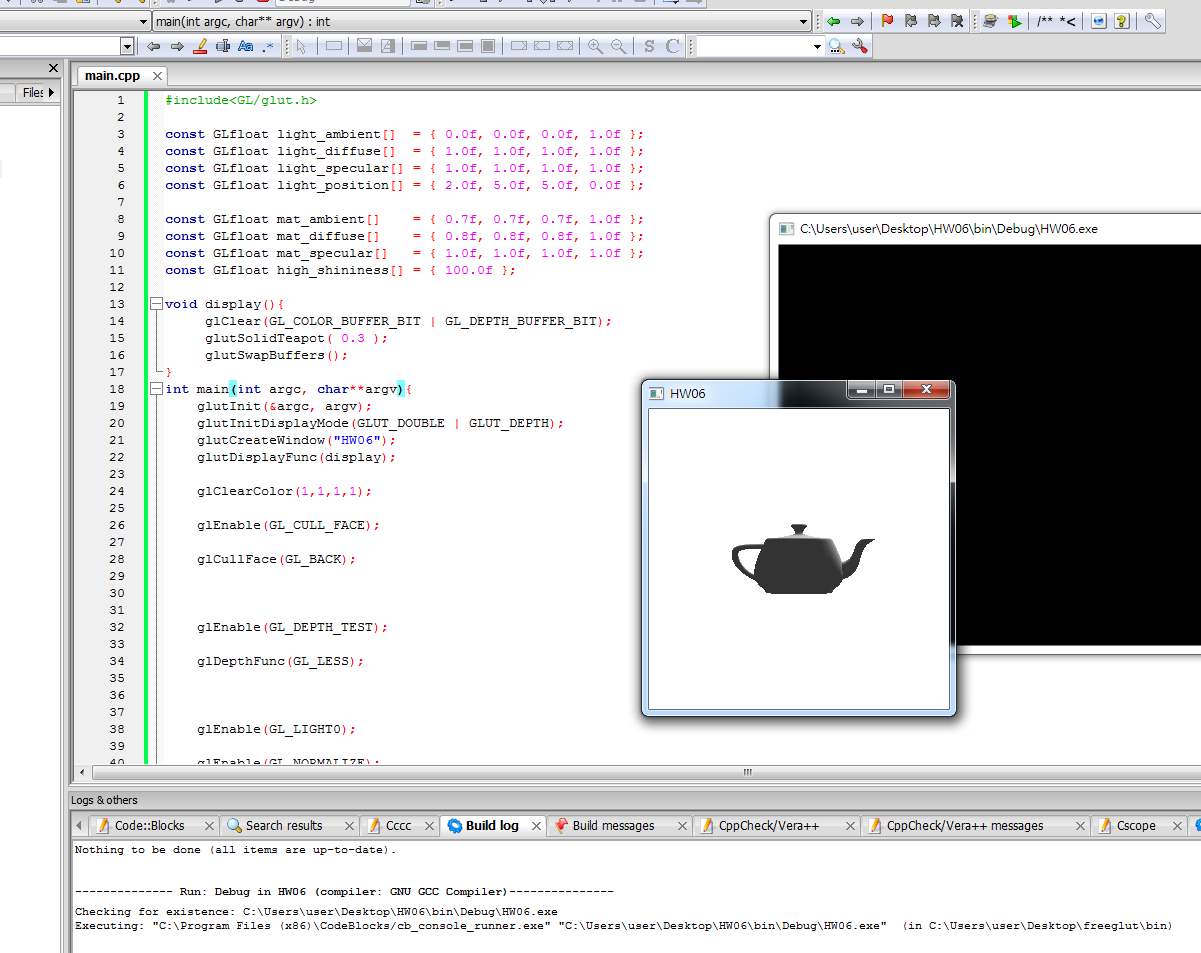

好爽喔，立體茶壺出來了!!!

（２）Ｔｈｅｍｅ：模型ＯＢＪ檔
要使用OBJ檔
首先
先改程式碼
在原來的程式中將
glutSolidTeapot( 0.3 );做茶壺這行刪掉

在source.zip中將

接著把transformation.c用Notepad++
打開用尋找打上glm關鍵字
把需要的程式碼找出
1.#include "glm.h"


2.GLMmodel* pmodel = NULL;

3.if (!pmodel) {
pmodel = glmReadOBJ("data/porsche.obj");
if (!pmodel) exit(0);
glmUnitize(pmodel);
glmFacetNormals(pmodel);
glmVertexNormals(pmodel, 90.0);
    }


    glmDraw(pmodel, GLM_SMOOTH | GLM_MATERIAL);

完成後長這樣
#include<GL/glut.h>
#include "glm.h"
GLMmodel* pmodel = NULL;

const GLfloat light_ambient[]  = { 0.0f, 0.0f, 0.0f, 1.0f };
const GLfloat light_diffuse[]  = { 1.0f, 1.0f, 1.0f, 1.0f };
const GLfloat light_specular[] = { 1.0f, 1.0f, 1.0f, 1.0f };
const GLfloat light_position[] = { 2.0f, 5.0f, 5.0f, 0.0f };

const GLfloat mat_ambient[]    = { 0.7f, 0.7f, 0.7f, 1.0f };
const GLfloat mat_diffuse[]    = { 0.8f, 0.8f, 0.8f, 1.0f };
const GLfloat mat_specular[]   = { 1.0f, 1.0f, 1.0f, 1.0f };
const GLfloat high_shininess[] = { 100.0f };

void display(){
     glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
     if (!pmodel) {
pmodel = glmReadOBJ("data/porsche.obj");
if (!pmodel) exit(0);
glmUnitize(pmodel);
glmFacetNormals(pmodel);
glmVertexNormals(pmodel, 90.0);
    }

    glmDraw(pmodel, GLM_SMOOTH | GLM_MATERIAL);
     glutSwapBuffers();
}
int main(int argc, char**argv){
    glutInit(&argc, argv);
    glutInitDisplayMode(GLUT_DOUBLE | GLUT_DEPTH);
    glutCreateWindow("HW06");
    glutDisplayFunc(display);

    glClearColor(1,1,1,1);

    glEnable(GL_CULL_FACE);

    glCullFace(GL_BACK);



    glEnable(GL_DEPTH_TEST);

    glDepthFunc(GL_LESS);



    glEnable(GL_LIGHT0);

    glEnable(GL_NORMALIZE);

    glEnable(GL_COLOR_MATERIAL);

    glEnable(GL_LIGHTING);



    glLightfv(GL_LIGHT0, GL_AMBIENT,  light_ambient);

    glLightfv(GL_LIGHT0, GL_DIFFUSE,  light_diffuse);

    glLightfv(GL_LIGHT0, GL_SPECULAR, light_specular);

    glLightfv(GL_LIGHT0, GL_POSITION, light_position);



    glMaterialfv(GL_FRONT, GL_AMBIENT,   mat_ambient);

    glMaterialfv(GL_FRONT, GL_DIFFUSE,   mat_diffuse);

    glMaterialfv(GL_FRONT, GL_SPECULAR,  mat_specular);

    glMaterialfv(GL_FRONT, GL_SHININESS, high_shininess);
    glutMainLoop();
}

打好後把

還有把

最後在CodeBlocks裡對自己Project裡按右鍵點ADD FLIES

把glm.cpp加進來就完成了

太棒了!!!



（３）實作：ＧＬＭ　ｖｓ　ＯＢＪ

（４）回家作業
