🔺電腦圖學2019-05-30 Week15


(1)主題：攝影機、運鏡

(2)主題：投影、矩陣

(3)複習：位置移動 V.S 轉動

 (4)複習：背景貼圖

 (5)期末作品

用程式碼做補間動畫

 TODO：到http://www.cmlab.csie.ntu.edu.tw/~jsyeh/3dcg10/
download：window.zip  解壓縮 至window
                    data.zip    解壓縮 data拉至window
                    glut32.dll  解壓縮 glut32.dll移至window資料夾

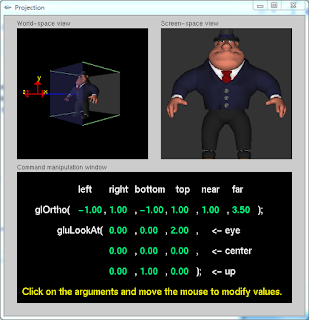

開啟 下載\window\Projection.exe



 滑鼠移到左側 > 右鍵 > 選擇投影的方法

 (1)glOrtho 垂直投影
(2)goFrustum
(3)gluPerspective 透視投影


v  glOrtho 垂直投影

v  gluPerspective 透視投影

v  gluLookAt -->eye center up 介紹



#開啟CodeBlocks GLUT

1、Search Freeglut > Download Freeglut3.0.0 MSVC Package Download freeglut 3.0.0 for MinGW

2、將檔案解壓縮後複製一個libfreeglut.a檔並重新命名為libglut32.a

3、開啟Code Blocks>新增一個新的專案>點選Glut project

4、命名專案>選擇資料存放區(C:\Users\user\Downloads\freeglut\lib)>Finish

5、於左側project開啟程式碼>執行

.

到http://www.cmlab.csie.ntu.edu.tw/~jsyeh/3dcg10/
download：source  解壓縮

 (1)將glm.c更名為glm.cpp

 (2)將glm.cpp加到自己的專案裡

 (3)再將glm.h放入自己的專案資料夾

 (4)把data加到自己專案的freeglut>bin

 (5)將projection.c用notepad++開啟

 (6)再將projection.c程式碼複製到自己專案main.cpp檔案裡

 (7)run一下專案可以看到projection執行的結果

到網站http://120.125.89.81/
download step02.cpp

貼上程式碼

#include <GL/glut.h>///GLUT 外掛
#include "glm.h"///glm.cpp for 3D model glmReadOBJ(), glmDraw(), glmUnitized()
GLMmodel * pmodel=NULL;///指標
void drawmodel(void)
{
    if (!pmodel) {
pmodel = glmReadOBJ("data/al.obj");
if (!pmodel) exit(0);
glmUnitize(pmodel);
glmFacetNormals(pmodel);
glmVertexNormals(pmodel, 90.0);
    }

     glmDraw(pmodel, GLM_SMOOTH | GLM_MATERIAL);
}
void display(void)
{
    glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
    drawmodel();
    glutSwapBuffers();
}

 int main(int argc, char** argv)
{
    glutInit(&argc, argv);
    glutInitDisplayMode(GLUT_DEPTH | GLUT_DOUBLE);
    glutInitWindowSize(512,512);
    glutInitWindowPosition(50, 50);
    glutCreateWindow("week15");

 //    glutReshapeFunc(reshape);
    glutDisplayFunc(display);

     glutMainLoop();

     return 0;
}

-
到網站http://120.125.89.81/
download step02-2.cpp

貼上程式碼

#include <GL/glut.h>///GLUT 外掛
#include "glm.h"///glm.cpp for 3D model glmReadOBJ(), glmDraw(), glmUnitized()
GLMmodel * pmodel=NULL;///指標
void drawmodel(void)
{
    if (!pmodel) {
pmodel = glmReadOBJ("data/al.obj");
if (!pmodel) exit(0);
glmUnitize(pmodel);
glmFacetNormals(pmodel);
glmVertexNormals(pmodel, 90.0);
    }

    glmDraw(pmodel, GLM_SMOOTH | GLM_MATERIAL);
}
void display(void)
{
    glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
    drawmodel();
    glutSwapBuffers();
}

int main(int argc, char** argv)
{
    glutInit(&argc, argv);
    glutInitDisplayMode(GLUT_DEPTH | GLUT_DOUBLE);
    glutInitWindowSize(512,512);
    glutInitWindowPosition(50, 50);
    glutCreateWindow("week15");

//    glutReshapeFunc(reshape);
    glutDisplayFunc(display);

    GLfloat light_pos[] = { 0.0, 0.0, 1.0, 0.0 };
    glEnable(GL_DEPTH_TEST);
glEnable(GL_LIGHTING);
    glEnable(GL_LIGHT0);
    glLightfv(GL_LIGHT0, GL_POSITION, light_pos);

    glutMainLoop();

    return 0;
}


-

到網站http://120.125.89.81/
download step02-3.cpp

貼上程式碼

#include <GL/glut.h>///GLUT 外掛
#include "glm.h"///glm.cpp for 3D model glmReadOBJ(), glmDraw(), glmUnitized()
GLMmodel * pmodel=NULL;///指標
void drawmodel(void)
{
    if (!pmodel) {
pmodel = glmReadOBJ("data/al.obj");
if (!pmodel) exit(0);
glmUnitize(pmodel);
glmFacetNormals(pmodel);
glmVertexNormals(pmodel, 90.0);
    }
    glmDraw(pmodel, GLM_SMOOTH | GLM_MATERIAL);
}
void display(void)
{
    glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
    drawmodel();
    glutSwapBuffers();
}
#include <math.h>///for sin() cos() ///NOW3
float eyeX=0.5, eyeY=0, eyeZ=0; ///NOW3
void timer(int t)///NOW3
{
    float angle = (t/180.0)*3.1415926; ///NOW3
    eyeX=0.5*cos(angle); ///NOW3
    eyeZ=0.5*sin(angle); ///NOW3

     glutTimerFunc(33, timer, t+1);///NOW3
    glMatrixMode(GL_MODELVIEW);///NOW3
    glLoadIdentity();///NOW3
    gluLookAt( eyeX, eyeY, eyeZ,///eye ///NOW3
           0, 0, 0,///center ///NOW3
               0, 1, 0);///up    ///NOW3

     glutPostRedisplay();///NOW3
}
int main(int argc, char** argv)
{
    glutInit(&argc, argv);
    glutInitDisplayMode(GLUT_DEPTH | GLUT_DOUBLE);
    glutInitWindowSize(512,512);
    glutInitWindowPosition(50, 50);
    glutCreateWindow("week15");
//    glutReshapeFunc(reshape);
    glutDisplayFunc(display);
    glutTimerFunc(33, timer, 0);///NOW3

     GLfloat light_pos[] = { 0.0, 0.0, 1.0, 0.0 };
    glEnable(GL_DEPTH_TEST);
glEnable(GL_LIGHTING);
    glEnable(GL_LIGHT0);
    glLightfv(GL_LIGHT0, GL_POSITION, light_pos);

     glutMainLoop();

     return 0;
}



-

到網站http://120.125.89.81/
download step02-4.cpp

貼上程式碼
這是沒有壞掉的模型

 #include <GL/glut.h>///GLUT 外掛
#include "glm.h"///glm.cpp for 3D model glmReadOBJ(), glmDraw(), glmUnitized()
GLMmodel * pmodel=NULL;///指標
void drawmodel(void)
{
    if (!pmodel) {
pmodel = glmReadOBJ("data/al.obj");
if (!pmodel) exit(0);
glmUnitize(pmodel);
glmFacetNormals(pmodel);
glmVertexNormals(pmodel, 90.0);
    }
    glmDraw(pmodel, GLM_SMOOTH | GLM_MATERIAL);
}
void display(void)
{
    glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
    drawmodel();
    glutSwapBuffers();
}
#include <math.h>///for sin() cos() ///NOW3
float eyeX=0.5, eyeY=0, eyeZ=0; ///NOW3
void timer(int t)///NOW3
{

     glMatrixMode(GL_PROJECTION); ///NOW4
    glLoadIdentity(); ///NOW4
glOrtho(-1, +1,  -1,+1, -10,+10); ///NOW4 你可以看到 -10...+10範圍
    float angle = (t/180.0)*3.1415926; ///NOW3
    eyeX=0.5*cos(angle); ///NOW3
    eyeZ=0.5*sin(angle); ///NOW3

     glutTimerFunc(33, timer, t+1);///NOW3
    glMatrixMode(GL_MODELVIEW);///NOW3
    glLoadIdentity();///NOW3
    gluLookAt( eyeX, eyeY, eyeZ,///eye ///NOW3
           0, 0, 0,///center ///NOW3
               0, 1, 0);///up    ///NOW3

     glutPostRedisplay();///NOW3
}
int main(int argc, char** argv)
{
    glutInit(&argc, argv);
    glutInitDisplayMode(GLUT_DEPTH | GLUT_DOUBLE);
    glutInitWindowSize(512,512);
    glutInitWindowPosition(50, 50);
    glutCreateWindow("week15");
//    glutReshapeFunc(reshape);
    glutDisplayFunc(display);
    glutTimerFunc(33, timer, 0);///NOW3

     GLfloat light_pos[] = { 0.0, 0.0, 1.0, 0.0 };
    glEnable(GL_DEPTH_TEST);
glEnable(GL_LIGHTING);
    glEnable(GL_LIGHT0);
    glLightfv(GL_LIGHT0, GL_POSITION, light_pos);

     glutMainLoop();

     return 0;

}

 -

到網站http://120.125.89.81/
download step02-5.cpp

貼上程式碼
可以調整相機遠近

#include <GL/glut.h>///GLUT 外掛
#include "glm.h"///glm.cpp for 3D model glmReadOBJ(), glmDraw(), glmUnitized()
GLMmodel * pmodel=NULL;///指標
void drawmodel(void)
{
    if (!pmodel) {
pmodel = glmReadOBJ("data/al.obj");
if (!pmodel) exit(0);
glmUnitize(pmodel);
glmFacetNormals(pmodel);
glmVertexNormals(pmodel, 90.0);
    }
    glmDraw(pmodel, GLM_SMOOTH | GLM_MATERIAL);
}
void display(void)
{
    glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
    drawmodel();
    glutSwapBuffers();
}
#include <math.h>///for sin() cos() ///NOW3
float eyeX=2, eyeY=0, eyeZ=0; ///NOW3
void timer(int t)///NOW3
{

    glMatrixMode(GL_PROJECTION); ///NOW4
    glLoadIdentity(); ///NOW4
///glOrtho(-1, +1,  -1,+1, -10.0,10.0); ///NOW4 你可以看到 -10...+10範圍
gluPerspective(60, 1.0, 0.001, 1000);///NOW5


    float angle = (t/180.0)*3.1415926; ///NOW3
    eyeX=2*cos(angle); ///NOW3
    eyeZ=2*sin(angle); ///NOW3

    glutTimerFunc(33, timer, t+1);///NOW3
    glMatrixMode(GL_MODELVIEW);///NOW3
    glLoadIdentity();///NOW3
    gluLookAt( eyeX, eyeY, eyeZ,///eye ///NOW3
           0, 0, 0,///center ///NOW3
               0, 1, 0);///up    ///NOW3

    glutPostRedisplay();///NOW3
}
int main(int argc, char** argv)
{
    glutInit(&argc, argv);
    glutInitDisplayMode(GLUT_DEPTH | GLUT_DOUBLE);
    glutInitWindowSize(512,512);
    glutInitWindowPosition(50, 50);
    glutCreateWindow("week15");
//    glutReshapeFunc(reshape);
    glutDisplayFunc(display);
    glutTimerFunc(33, timer, 0);///NOW3

    GLfloat light_pos[] = { 0.0, 0.0, 1.0, 0.0 };
    glEnable(GL_DEPTH_TEST);
glEnable(GL_LIGHTING);
    glEnable(GL_LIGHT0);
    glLightfv(GL_LIGHT0, GL_POSITION, light_pos);

    glutMainLoop();

    return 0;
}
