🔺電腦圖學2019-05-09 Week12
(1)主題：鍵盤
(2)主題：聲音、音樂
(3)複習：階層 T-R-T 骨架
(4)作業：能操控的機器人
到Google搜尋wav下載> download音樂()
下載後要將檔名更改成英文(Breez.wav)，否則在CodeBlock裡會無法執行

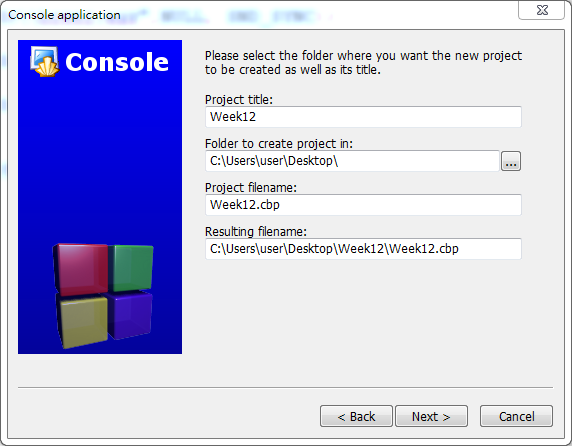

開啟CodeBlocks > New > Project > Console application
修改一下程式碼
使程式可以播放出聲音
#include <mmsystem.h>///(1)Multimedia System裡面有聲音的函式
int main()
{
PlaySoundA("C:\\Users\\user\\Downloads\\breez.wav",NULL, SND_SYNC);
PlaySoundA("C:\\Users\\user\\Downloads\\breez.wav",NULL, SND_SYNC);
PlaySoundA("C:\\Users\\user\\Downloads\\breez.wav",NULL, SND_SYNC);
///(2)播放聲音Play Sound ASCII英文的檔名
}
最後在執行時，專案的設定，要在link時，加入一個 winmm 的library
project > Build options > Linker setting > Add > Add library
執行結果：
我們會發現，聽得見聲音，但小黑窗無法顯示撥放的過程
所以我們增加一些程式，用printf配合音樂，讓音樂播放的過程更容易被識別
程式碼如下：
#include <windows.h>///(3)因為一些基礎Windows型別
#include <mmsystem.h>///(1)Multimedia System裡面有聲音的函式
#include <stdio.h>///配合printf
//using namespace std;
int main()
{
printf("播放第一次\n");///配合printf讓音樂播放的過程更容易被識別
PlaySoundA("C:\\Users\\user\\Downloads\\breez.wav",NULL, SND_SYNC);
printf("播放第二次\n");///配合printf讓音樂播放的過程更容易被識別
PlaySoundA("C:\\Users\\user\\Downloads\\breez.wav",NULL, SND_SYNC);
printf("播放第三次\n");///配合printf讓音樂播放的過程更容易被識別
PlaySoundA("C:\\Users\\user\\Downloads\\breez.wav",NULL, SND_SYNC);
///(2)播放聲音Play Sound ASCII英文的檔名
}
-
現在改用3D Project 來撰寫聲音的程式碼
#開啟GLUT
1、Download Freeglut package
2、將檔案解壓縮後複製一個libfreeglut.a檔並重新命名為libglut32.a
3、開啟Code Blocks>新增一個新的專案>點選Glut project
4、命名專案>選擇資料存放區(C:\Users\user\Downloads\freeglut\lib)>Finish
加入兩列程式碼：
PlaySoundA("C:\\Users\\user\\Downloads\\breez.wav",NULL, SND_SYNC);
全部程式碼如下：
#ifdef __APPLE__
#else
#include <GL/glut.h>
#endif
#include <stdlib.h>
static int slices = 16;
static int stacks = 16;
static void resize(int width, int height)
{
const float ar = (float) width / (float) height;
glViewport(0, 0, width, height);
glMatrixMode(GL_PROJECTION);
glLoadIdentity();
glFrustum(-ar, ar, -1.0, 1.0, 2.0, 100.0);
glMatrixMode(GL_MODELVIEW);
glLoadIdentity() ;
}
static void display(void)
{
const double t = glutGet(GLUT_ELAPSED_TIME) / 1000.0;
const double a = t*90.0;
glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
glColor3d(1,0,0);
glPushMatrix();
glTranslated(-2.4,1.2,-6);
glRotated(60,1,0,0);
glRotated(a,0,0,1);
glutSolidSphere(1,slices,stacks);
glPopMatrix();
glPushMatrix();
glTranslated(0,1.2,-6);
glRotated(60,1,0,0);
glRotated(a,0,0,1);
glutSolidCone(1,1,slices,stacks);
glPopMatrix();
glPushMatrix();
glTranslated(2.4,1.2,-6);
glRotated(60,1,0,0);
glRotated(a,0,0,1);
glutSolidTorus(0.2,0.8,slices,stacks);
glPopMatrix();
glPushMatrix();
glTranslated(-2.4,-1.2,-6);
glRotated(60,1,0,0);
glRotated(a,0,0,1);
glutWireSphere(1,slices,stacks);
glPopMatrix();
glPushMatrix();
glTranslated(0,-1.2,-6);
glRotated(60,1,0,0);
glRotated(a,0,0,1);
glutWireCone(1,1,slices,stacks);
glPopMatrix();
glPushMatrix();
glTranslated(2.4,-1.2,-6);
glRotated(60,1,0,0);
glRotated(a,0,0,1);
glutWireTorus(0.2,0.8,slices,stacks);
glPopMatrix();
glutSwapBuffers();
}
static void key(unsigned char key, int x, int y)
{
switch (key)
{
case 27 :
case 'q':
exit(0);
break;
case '+':
slices++;
stacks++;
break;
case '-':
if (slices>3 && stacks>3)
{
slices--;
stacks--;
}
break;
}
glutPostRedisplay();
}
static void idle(void)
{
glutPostRedisplay();
}
const GLfloat light_ambient[] = { 0.0f, 0.0f, 0.0f, 1.0f };
const GLfloat light_diffuse[] = { 1.0f, 1.0f, 1.0f, 1.0f };
const GLfloat light_specular[] = { 1.0f, 1.0f, 1.0f, 1.0f };
const GLfloat light_position[] = { 2.0f, 5.0f, 5.0f, 0.0f };
const GLfloat mat_ambient[] = { 0.7f, 0.7f, 0.7f, 1.0f };
const GLfloat mat_diffuse[] = { 0.8f, 0.8f, 0.8f, 1.0f };
const GLfloat mat_specular[] = { 1.0f, 1.0f, 1.0f, 1.0f };
const GLfloat high_shininess[] = { 100.0f };
#include <mmsystem.h>
int main(int argc, char *argv[])
{
PlaySoundA("C:\\Users\\user\\Downloads\\breez.wav",NULL, SND_SYNC);
glutInit(&argc, argv);
glutInitWindowSize(640,480);
glutInitWindowPosition(10,10);
glutInitDisplayMode(GLUT_RGB | GLUT_DOUBLE | GLUT_DEPTH);
glutCreateWindow("GLUT Shapes");
glutReshapeFunc(resize);
glutDisplayFunc(display);
glutKeyboardFunc(key);
glutIdleFunc(idle);
glClearColor(1,1,1,1);
glEnable(GL_CULL_FACE);
glCullFace(GL_BACK);
glEnable(GL_DEPTH_TEST);
glDepthFunc(GL_LESS);
glEnable(GL_LIGHT0);
glEnable(GL_NORMALIZE);
glEnable(GL_COLOR_MATERIAL);
glEnable(GL_LIGHTING);
glLightfv(GL_LIGHT0, GL_AMBIENT, light_ambient);
glLightfv(GL_LIGHT0, GL_DIFFUSE, light_diffuse);
glLightfv(GL_LIGHT0, GL_SPECULAR, light_specular);
glLightfv(GL_LIGHT0, GL_POSITION, light_position);
glMaterialfv(GL_FRONT, GL_AMBIENT, mat_ambient);
glMaterialfv(GL_FRONT, GL_DIFFUSE, mat_diffuse);
glMaterialfv(GL_FRONT, GL_SPECULAR, mat_specular);
glMaterialfv(GL_FRONT, GL_SHININESS, high_shininess);
glutMainLoop();
return EXIT_SUCCESS;
}

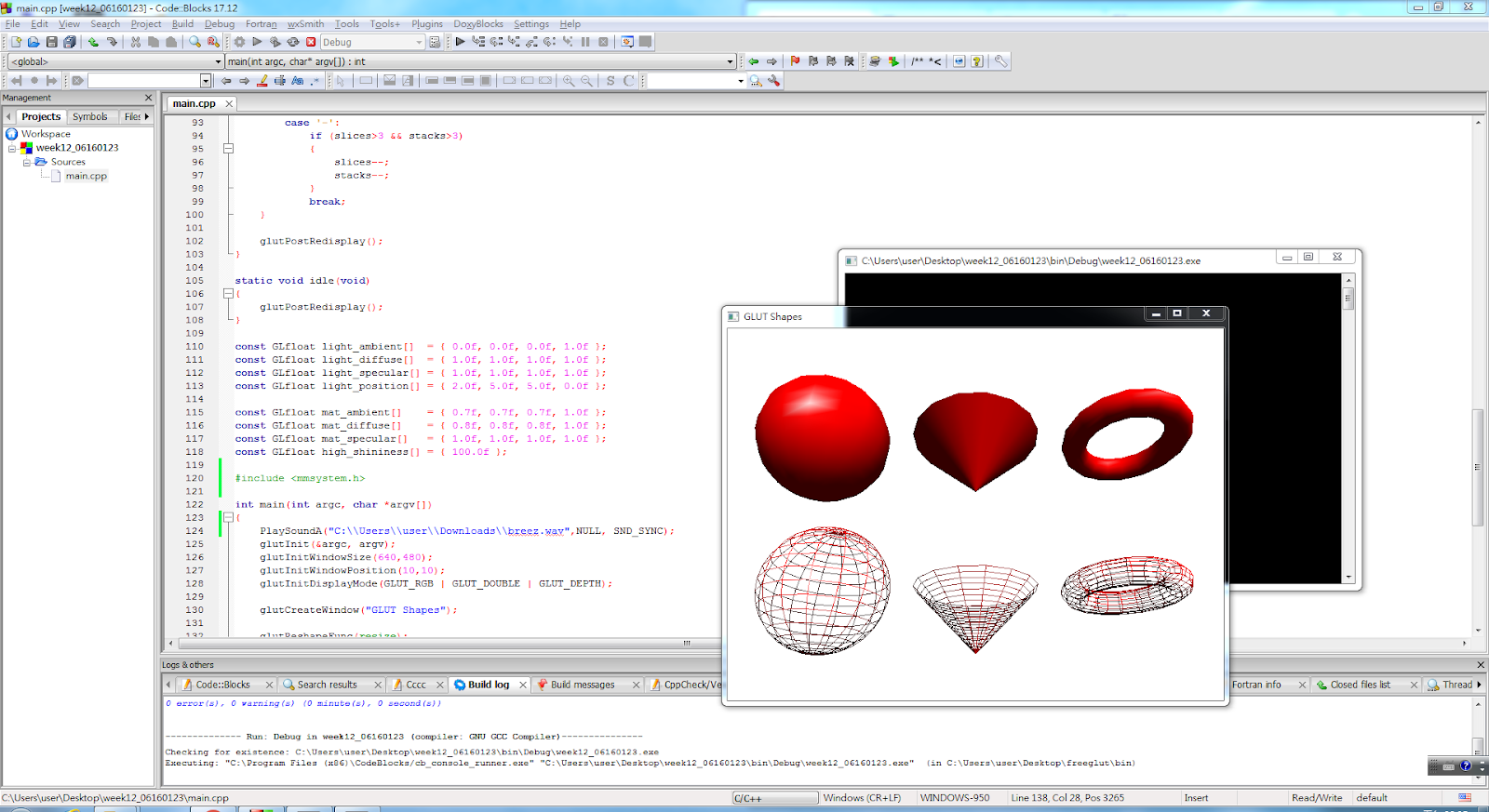

程式運行方式：
跳出黑窗時先撥放Breez音檔
音檔播放完畢即跳出3D動圖
-
現在加入新的音檔(do/re/mi/fa/so)
配合鍵盤彈出音階 do=1/re=2/mi=3/fa=4/so=5
加入程式碼：
#include <mmsystem.h>
if(key=='1') PlaySoundA("C:\\Users\\user\\Downloads\\music\\do.wav",NULL, SND_ASYNC);
if(key=='2') PlaySoundA("C:\\Users\\user\\Downloads\\music\\re.wav",NULL, SND_ASYNC);
if(key=='3') PlaySoundA("C:\\Users\\user\\Downloads\\music\\mi.wav",NULL, SND_ASYNC);
if(key=='4') PlaySoundA("C:\\Users\\user\\Downloads\\music\\fa.wav",NULL, SND_ASYNC);
if(key=='5') PlaySoundA("C:\\Users\\user\\Downloads\\music\\so.wav",NULL, SND_ASYNC);
全部程式碼如下：
全部程式碼如下：
#ifdef __APPLE__
#else
#include <GL/glut.h>
#endif
#include <stdlib.h>
static int slices = 16;
static int stacks = 16;
static void resize(int width, int height)
{
const float ar = (float) width / (float) height;
glViewport(0, 0, width, height);
glMatrixMode(GL_PROJECTION);
glLoadIdentity();
glFrustum(-ar, ar, -1.0, 1.0, 2.0, 100.0);
glMatrixMode(GL_MODELVIEW);
glLoadIdentity() ;
}
static void display(void)
{
const double t = glutGet(GLUT_ELAPSED_TIME) / 1000.0;
const double a = t*90.0;
glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
glColor3d(1,0,0);
glPushMatrix();
glTranslated(-2.4,1.2,-6);
glRotated(60,1,0,0);
glRotated(a,0,0,1);
glutSolidSphere(1,slices,stacks);
glPopMatrix();
glPushMatrix();
glTranslated(0,1.2,-6);
glRotated(60,1,0,0);
glRotated(a,0,0,1);
glutSolidCone(1,1,slices,stacks);
glPopMatrix();
glPushMatrix();
glTranslated(2.4,1.2,-6);
glRotated(60,1,0,0);
glRotated(a,0,0,1);
glutSolidTorus(0.2,0.8,slices,stacks);
glPopMatrix();
glPushMatrix();
glTranslated(-2.4,-1.2,-6);
glRotated(60,1,0,0);
glRotated(a,0,0,1);
glutWireSphere(1,slices,stacks);
glPopMatrix();
glPushMatrix();
glTranslated(0,-1.2,-6);
glRotated(60,1,0,0);
glRotated(a,0,0,1);
glutWireCone(1,1,slices,stacks);
glPopMatrix();
glPushMatrix();
glTranslated(2.4,-1.2,-6);
glRotated(60,1,0,0);
glRotated(a,0,0,1);
glutWireTorus(0.2,0.8,slices,stacks);
glPopMatrix();
glutSwapBuffers();
}
#include <mmsystem.h>
static void key(unsigned char key, int x, int y)
{
if(key=='1') PlaySoundA("C:\\Users\\user\\Downloads\\music\\do.wav",NULL, SND_ASYNC);
if(key=='2') PlaySoundA("C:\\Users\\user\\Downloads\\music\\re.wav",NULL, SND_ASYNC);
if(key=='3') PlaySoundA("C:\\Users\\user\\Downloads\\music\\mi.wav",NULL, SND_ASYNC);
if(key=='4') PlaySoundA("C:\\Users\\user\\Downloads\\music\\fa.wav",NULL, SND_ASYNC);
if(key=='5') PlaySoundA("C:\\Users\\user\\Downloads\\music\\so.wav",NULL, SND_ASYNC);
switch (key)
{
case 27 :
case 'q':
exit(0);
break;
case '+':
slices++;
stacks++;
break;
case '-':
if (slices>3 && stacks>3)
{
slices--;
stacks--;
}
break;
}
glutPostRedisplay();
}
static void idle(void)
{
glutPostRedisplay();
}
const GLfloat light_ambient[] = { 0.0f, 0.0f, 0.0f, 1.0f };
const GLfloat light_diffuse[] = { 1.0f, 1.0f, 1.0f, 1.0f };
const GLfloat light_specular[] = { 1.0f, 1.0f, 1.0f, 1.0f };
const GLfloat light_position[] = { 2.0f, 5.0f, 5.0f, 0.0f };
const GLfloat mat_ambient[] = { 0.7f, 0.7f, 0.7f, 1.0f };
const GLfloat mat_diffuse[] = { 0.8f, 0.8f, 0.8f, 1.0f };
const GLfloat mat_specular[] = { 1.0f, 1.0f, 1.0f, 1.0f };
const GLfloat high_shininess[] = { 100.0f };
int main(int argc, char *argv[])
{
PlaySoundA("C:\\Users\\user\\Downloads\\breez.wav",NULL, SND_SYNC);
glutInit(&argc, argv);
glutInitWindowSize(640,480);
glutInitWindowPosition(10,10);
glutInitDisplayMode(GLUT_RGB | GLUT_DOUBLE | GLUT_DEPTH);
glutCreateWindow("GLUT Shapes");
glutReshapeFunc(resize);
glutDisplayFunc(display);
glutKeyboardFunc(key);
glutIdleFunc(idle);
glClearColor(1,1,1,1);
glEnable(GL_CULL_FACE);
glCullFace(GL_BACK);
glEnable(GL_DEPTH_TEST);
glDepthFunc(GL_LESS);
glEnable(GL_LIGHT0);
glEnable(GL_NORMALIZE);
glEnable(GL_COLOR_MATERIAL);
glEnable(GL_LIGHTING);
glLightfv(GL_LIGHT0, GL_AMBIENT, light_ambient);
glLightfv(GL_LIGHT0, GL_DIFFUSE, light_diffuse);
glLightfv(GL_LIGHT0, GL_SPECULAR, light_specular);
glLightfv(GL_LIGHT0, GL_POSITION, light_position);
glMaterialfv(GL_FRONT, GL_AMBIENT, mat_ambient);
glMaterialfv(GL_FRONT, GL_DIFFUSE, mat_diffuse);
glMaterialfv(GL_FRONT, GL_SPECULAR, mat_specular);
glMaterialfv(GL_FRONT, GL_SHININESS, high_shininess);
glutMainLoop();
return EXIT_SUCCESS;
}

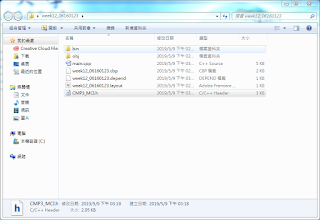

到小葉的網站下載CMP3_MCI.h音檔 > 下載後放入自己的專案內
#else
#include <GL/glut.h>
#endif
#include <stdlib.h>
static int slices = 16;
static int stacks = 16;
static void resize(int width, int height)
{
const float ar = (float) width / (float) height;
glViewport(0, 0, width, height);
glMatrixMode(GL_PROJECTION);
glLoadIdentity();
glFrustum(-ar, ar, -1.0, 1.0, 2.0, 100.0);
glMatrixMode(GL_MODELVIEW);
glLoadIdentity() ;
}
static void display(void)
{
const double t = glutGet(GLUT_ELAPSED_TIME) / 1000.0;
const double a = t*90.0;
glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
glColor3d(1,0,0);
glPushMatrix();
glTranslated(-2.4,1.2,-6);
glRotated(60,1,0,0);
glRotated(a,0,0,1);
glutSolidSphere(1,slices,stacks);
glPopMatrix();
glPushMatrix();
glTranslated(0,1.2,-6);
glRotated(60,1,0,0);
glRotated(a,0,0,1);
glutSolidCone(1,1,slices,stacks);
glPopMatrix();
glPushMatrix();
glTranslated(2.4,1.2,-6);
glRotated(60,1,0,0);
glRotated(a,0,0,1);
glutSolidTorus(0.2,0.8,slices,stacks);
glPopMatrix();
glPushMatrix();
glTranslated(-2.4,-1.2,-6);
glRotated(60,1,0,0);
glRotated(a,0,0,1);
glutWireSphere(1,slices,stacks);
glPopMatrix();
glPushMatrix();
glTranslated(0,-1.2,-6);
glRotated(60,1,0,0);
glRotated(a,0,0,1);
glutWireCone(1,1,slices,stacks);
glPopMatrix();
glPushMatrix();
glTranslated(2.4,-1.2,-6);
glRotated(60,1,0,0);
glRotated(a,0,0,1);
glutWireTorus(0.2,0.8,slices,stacks);
glPopMatrix();
glutSwapBuffers();
}
#include <mmsystem.h>
static void key(unsigned char key, int x, int y)
{
if(key=='1') PlaySoundA("C:\\Users\\user\\Downloads\\music\\do.wav",NULL, SND_ASYNC);
if(key=='2') PlaySoundA("C:\\Users\\user\\Downloads\\music\\re.wav",NULL, SND_ASYNC);
if(key=='3') PlaySoundA("C:\\Users\\user\\Downloads\\music\\mi.wav",NULL, SND_ASYNC);
if(key=='4') PlaySoundA("C:\\Users\\user\\Downloads\\music\\fa.wav",NULL, SND_ASYNC);
if(key=='5') PlaySoundA("C:\\Users\\user\\Downloads\\music\\so.wav",NULL, SND_ASYNC);
switch (key)
{
case 27 :
case 'q':
exit(0);
break;
case '+':
slices++;
stacks++;
break;
case '-':
if (slices>3 && stacks>3)
{
slices--;
stacks--;
}
break;
}
glutPostRedisplay();
}
static void idle(void)
{
glutPostRedisplay();
}
const GLfloat light_ambient[] = { 0.0f, 0.0f, 0.0f, 1.0f };
const GLfloat light_diffuse[] = { 1.0f, 1.0f, 1.0f, 1.0f };
const GLfloat light_specular[] = { 1.0f, 1.0f, 1.0f, 1.0f };
const GLfloat light_position[] = { 2.0f, 5.0f, 5.0f, 0.0f };
const GLfloat mat_ambient[] = { 0.7f, 0.7f, 0.7f, 1.0f };
const GLfloat mat_diffuse[] = { 0.8f, 0.8f, 0.8f, 1.0f };
const GLfloat mat_specular[] = { 1.0f, 1.0f, 1.0f, 1.0f };
const GLfloat high_shininess[] = { 100.0f };
int main(int argc, char *argv[])
{
PlaySoundA("C:\\Users\\user\\Downloads\\breez.wav",NULL, SND_SYNC);
glutInit(&argc, argv);
glutInitWindowSize(640,480);
glutInitWindowPosition(10,10);
glutInitDisplayMode(GLUT_RGB | GLUT_DOUBLE | GLUT_DEPTH);
glutCreateWindow("GLUT Shapes");
glutReshapeFunc(resize);
glutDisplayFunc(display);
glutKeyboardFunc(key);
glutIdleFunc(idle);
glClearColor(1,1,1,1);
glEnable(GL_CULL_FACE);
glCullFace(GL_BACK);
glEnable(GL_DEPTH_TEST);
glDepthFunc(GL_LESS);
glEnable(GL_LIGHT0);
glEnable(GL_NORMALIZE);
glEnable(GL_COLOR_MATERIAL);
glEnable(GL_LIGHTING);
glLightfv(GL_LIGHT0, GL_AMBIENT, light_ambient);
glLightfv(GL_LIGHT0, GL_DIFFUSE, light_diffuse);
glLightfv(GL_LIGHT0, GL_SPECULAR, light_specular);
glLightfv(GL_LIGHT0, GL_POSITION, light_position);
glMaterialfv(GL_FRONT, GL_AMBIENT, mat_ambient);
glMaterialfv(GL_FRONT, GL_DIFFUSE, mat_diffuse);
glMaterialfv(GL_FRONT, GL_SPECULAR, mat_specular);
glMaterialfv(GL_FRONT, GL_SHININESS, high_shininess);
glutMainLoop();
return EXIT_SUCCESS;
}
程式運行方式：
跳出黑窗時先撥放Breez音檔
音檔播放完畢即跳出3D動圖，跳出後即可配而鍵盤突出音階
到小葉的網站下載CMP3_MCI.h音檔 > 下載後放入自己的專案內
-
改寫撥MP3的程式碼
加入程式碼：
#include "CMP3_MCI.h"///(1)雙引號，先找自己現在的目錄，Class for MP3 by MCI方法CMP3_MCI myMP3;///(2)宣告一個我們要用的物件
#include <mmsystem.h>
int main(int argc, char *argv[])
{
myMP3.Load("C:\\Users\\user\\Downloads\\breez.wav");///(3)Load我們的MP3
myMP3.Play();///(4)Play他就成功了
全部程式碼如下：
#ifdef __APPLE__
#else
#include <GL/glut.h>
#endif
#include <stdlib.h>
static int slices = 16;
static int stacks = 16;
static void resize(int width, int height)
{
const float ar = (float) width / (float) height;
glViewport(0, 0, width, height);
glMatrixMode(GL_PROJECTION);
glLoadIdentity();
glFrustum(-ar, ar, -1.0, 1.0, 2.0, 100.0);
glMatrixMode(GL_MODELVIEW);
glLoadIdentity() ;
}
static void display(void)
{
const double t = glutGet(GLUT_ELAPSED_TIME) / 1000.0;
const double a = t*90.0;
glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
glColor3d(1,0,0);
glPushMatrix();
glTranslated(-2.4,1.2,-6);
glRotated(60,1,0,0);
glRotated(a,0,0,1);
glutSolidSphere(1,slices,stacks);
glPopMatrix();
glPushMatrix();
glTranslated(0,1.2,-6);
glRotated(60,1,0,0);
glRotated(a,0,0,1);
glutSolidCone(1,1,slices,stacks);
glPopMatrix();
glPushMatrix();
glTranslated(2.4,1.2,-6);
glRotated(60,1,0,0);
glRotated(a,0,0,1);
glutSolidTorus(0.2,0.8,slices,stacks);
glPopMatrix();
glPushMatrix();
glTranslated(-2.4,-1.2,-6);
glRotated(60,1,0,0);
glRotated(a,0,0,1);
glutWireSphere(1,slices,stacks);
glPopMatrix();
glPushMatrix();
glTranslated(0,-1.2,-6);
glRotated(60,1,0,0);
glRotated(a,0,0,1);
glutWireCone(1,1,slices,stacks);
glPopMatrix();
glPushMatrix();
glTranslated(2.4,-1.2,-6);
glRotated(60,1,0,0);
glRotated(a,0,0,1);
glutWireTorus(0.2,0.8,slices,stacks);
glPopMatrix();
glutSwapBuffers();
}
#include <mmsystem.h>
static void key(unsigned char key, int x, int y)
{
if(key=='1') PlaySoundA("C:\\Users\\user\\Downloads\\music\\do.wav",NULL, SND_ASYNC);
if(key=='2') PlaySoundA("C:\\Users\\user\\Downloads\\music\\re.wav",NULL, SND_ASYNC);
if(key=='3') PlaySoundA("C:\\Users\\user\\Downloads\\music\\mi.wav",NULL, SND_ASYNC);
if(key=='4') PlaySoundA("C:\\Users\\user\\Downloads\\music\\fa.wav",NULL, SND_ASYNC);
if(key=='5') PlaySoundA("C:\\Users\\user\\Downloads\\music\\so.wav",NULL, SND_ASYNC);
switch (key)
{
case 27 :
case 'q':
exit(0);
break;
case '+':
slices++;
stacks++;
break;
case '-':
if (slices>3 && stacks>3)
{
slices--;
stacks--;
}
break;
}
glutPostRedisplay();
}
static void idle(void)
{
glutPostRedisplay();
}
const GLfloat light_ambient[] = { 0.0f, 0.0f, 0.0f, 1.0f };
const GLfloat light_diffuse[] = { 1.0f, 1.0f, 1.0f, 1.0f };
const GLfloat light_specular[] = { 1.0f, 1.0f, 1.0f, 1.0f };
const GLfloat light_position[] = { 2.0f, 5.0f, 5.0f, 0.0f };
const GLfloat mat_ambient[] = { 0.7f, 0.7f, 0.7f, 1.0f };
const GLfloat mat_diffuse[] = { 0.8f, 0.8f, 0.8f, 1.0f };
const GLfloat mat_specular[] = { 1.0f, 1.0f, 1.0f, 1.0f };
const GLfloat high_shininess[] = { 100.0f };
#include "CMP3_MCI.h"///(1)雙引號，先找自己現在的目錄，Class for MP3 by MCI方法
CMP3_MCI myMP3;///(2)宣告一個我們要用的物件
#include <mmsystem.h>
int main(int argc, char *argv[])
{
myMP3.Load("C:\\Users\\user\\Downloads\\breez.wav");///(3)Load我們的MP3
myMP3.Play();///(4)Play他就成功了
glutInit(&argc, argv);
glutInitWindowSize(640,480);
glutInitWindowPosition(10,10);
glutInitDisplayMode(GLUT_RGB | GLUT_DOUBLE | GLUT_DEPTH);
glutCreateWindow("GLUT Shapes");
glutReshapeFunc(resize);
glutDisplayFunc(display);
glutKeyboardFunc(key);
glutIdleFunc(idle);
glClearColor(1,1,1,1);
glEnable(GL_CULL_FACE);
glCullFace(GL_BACK);
glEnable(GL_DEPTH_TEST);
glDepthFunc(GL_LESS);
glEnable(GL_LIGHT0);
glEnable(GL_NORMALIZE);
glEnable(GL_COLOR_MATERIAL);
glEnable(GL_LIGHTING);
glLightfv(GL_LIGHT0, GL_AMBIENT, light_ambient);
glLightfv(GL_LIGHT0, GL_DIFFUSE, light_diffuse);
glLightfv(GL_LIGHT0, GL_SPECULAR, light_specular);
glLightfv(GL_LIGHT0, GL_POSITION, light_position);
glMaterialfv(GL_FRONT, GL_AMBIENT, mat_ambient);
glMaterialfv(GL_FRONT, GL_DIFFUSE, mat_diffuse);
glMaterialfv(GL_FRONT, GL_SPECULAR, mat_specular);
glMaterialfv(GL_FRONT, GL_SHININESS, high_shininess);
glutMainLoop();
return EXIT_SUCCESS;
}
程式運行方式：
跳出黑窗時會播放MP3檔
音檔播放完畢即跳出3D動圖，跳出後即可配而鍵盤突出音階
沒有留言:
張貼留言
